SAAM DJMODEL : 15WF10020N

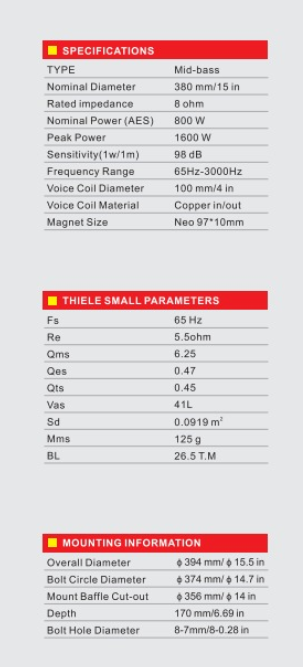

| SPECIFICATIONS |
Value |
| TYPE |
Mid-bass |
| Nominal Diameter |
380 mm/15in |
| Rated impedance |
8 ohm |
| Nominal Power (AES) |
800 W |
| Peak Power |
1600 W |
| Sensitivity (1w/1m) |
98 dB |
| Frequency Range |
65Hz-3000Hz |
| Voice Coil Diameter |
100 mm/4 in |
| Voice Coil Material |
Copper in/out |
| Magnet Size |
Neo 97*10mm |
| THIELE SMALL PARAMETERS |
Value |
| Fs |
65 Hz |
| Re |
5.5 ohm |
| Qms |
6.25 |
| Qes |
0.47 |
| Qts |
0.45 |
| Vas |
41L |
| Sd |
0.0919m² |
| MMS |
125g |
| BL |
26.5 T.M |
| MOUNTING INFORMATION |
Value |
| Overall Diameter |
Φ 394 mm/ Φ 15.5 in |
| Bolt Circle Diameter |
Φ 374 mm/ Φ 14.7 in |
| Mount Baffle Cut-out |
Φ 356 mm/ Φ 14 in |
| Depth |
170 mm/6.69 in |
| Bolt Hole Diameter |
8-7mm/8-0.28 in |
MODEL : 15WF10020N
